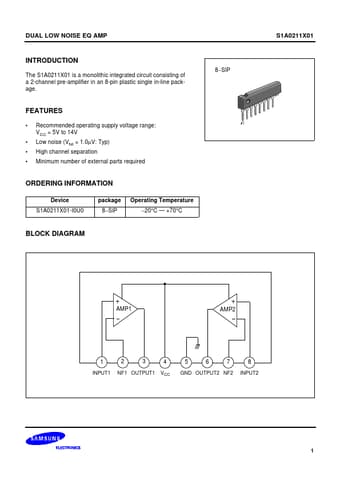

S1A0211X01
FEATURES
- -
- - Remended operating supply voltage range: VCC = 5V to 14V Low noise (VNI = 1.0µV: Typ) High channel separation Minimum number of external parts required
ORDERING INFORMATION
Device S1A0211X01-I0U0 package 8- Sl P Operating Temperature
- 20°C
- +70°C
BLOCK DIAGRAM
+
AMP1
+
AMP2
INPUT1
INPUT2
NF1 OUTPUT1
GND OUTPUT2 NF2
DUAL LOW NOISE EQ AMP
ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)
Characteristic Supply Voltage Power Dissipation Operating Temperature Storage Temperature Symbol VCC PD TOPR TSTG Value 18 200
- 20
- + 70
- 40
- + 125 Unit V m W °C °C
ELECTRICAL CHARACTERISTICS
(Ta=25°C, VCC = 9V, RL= 10kΩ, RG = 600Ω, f = 1k Hz, NAB, unless otherwise specified) Characteristic Quiescent Circuit Current Open Loop Voltage Gain Closed Loop Voltage Gain Output Voltage Total Harmonic Distortion Input Resistance Equivalent Input Noise Voltage Cross Talk Symbol ICCQ GVO GVC VO THD RI VNI CT R G = 2.2kΩ BW (- 3d B) = 15Hz
- 30k Hz R G = 2.2kΩ...
