S3C72C8 Datasheet - Samsung semiconductor

S3C72C8 The S3C72C8 single-chip CMOS microcontroller has been designed for high performance using Samsungs newest 4-bit CPU core/ SAM47 (Samsung Arrangeable M

Pin Name P0.0 P0.1 P0.2 P0.3 Pin Type I/O Description 4-bit I/O port. 1-bit and 4-bit read/write and test are possible. Individual pins are software configurable as input or output; Individual pins are software configurable as open-drain or push-pull output; Individual pull-up resistors are softwar.

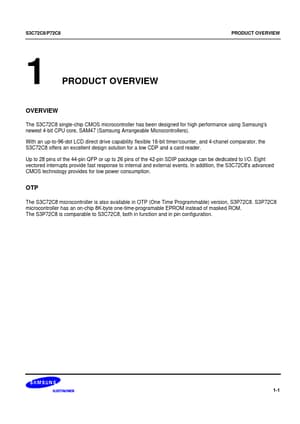

S3C72C8/P72C8 PRODUCT OVERVIEW 1 OVERVIEW PRODUCT OVERVIEW The S3C72C8 single-chip CMOS microcontroller has been designed for high performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers). With an up-to-96-dot LCD direct drive capability flexible 16-bit timer/counter, and 4-chanel comparator, the S3C72C8 offers an excellent design solution for a low CDP and a card reader. Up to 28 pins of the 44-pin QFP or up to 26 pins of the 42-pin SDIP package can be.

S3C72C8 Features

* Memory

* 512 × 4-bit RAM (including LCD display RAM) 8,192 × 8-bit ROM Interrupts

* Four internal vectored interrupts Five external vectored interrupts Two quasi-interrupts 28 I/O Pins

* I/O: 26 pins (44-pin QFP, 42-pin SDIP) Output on

S3C72C8 Datasheet (237.84 KB)

S3C72C8 Datasheet Preview — Preview of S3C72C8 PDF

Datasheet Details

Part number:

S3C72C8

Manufacturer:

Samsung semiconductor

File Size:

237.84 KB

Description:

The s3c72c8 single-chip cmos microcontroller has been designed for high performance using samsungs newest 4-bit cpu core/ sam47 (samsung arrangeable m.
