S3C72E8 Datasheet, Drivers., Samsung semiconductor

✔ S3C72E8 Features

SUMMARY Memory
8192 × 8 bit program memory 5120 × 4 bit data memory in S3C72E8 108 x 5 bit display memory LCD Display
12 characters dot matrix display (5 x 7)

✔ S3C72E8 Application

and is especially designed for multi data bank, telephone and LCD game. OTP The S3C72E8 microcontroller is

PDF File Details

Samsung semiconductor manufacturer logo

Part number:

S3C72E8

Manufacturer:

Samsung semiconductor

File Size:

207.36kb

Download:

Description:

The s3c72e8/p72e8 is a sam47 core-based 4-bit cmos single-chip microcontroller. it has a timer/counter and lcd drivers.. Table 1-1. Pin Descriptions Pin Description Type I P0.0 - P0.3 4-bit input port. 1 and 4-bit read, and test are possible. Pull-up re

Datasheet Preview: S3C72E8

📥 Download PDF (207.36kb)

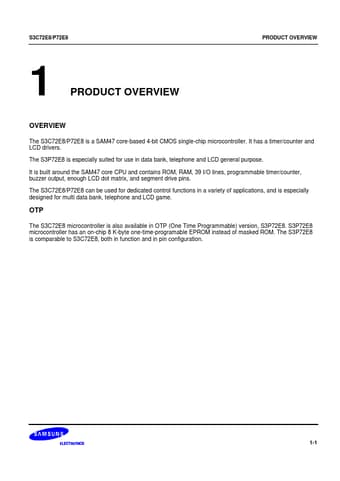

Page 2 of S3C72E8
