S5C7212X - B/W CCD PROCESSOR

Samsung semiconductor

The S5C7212X by Samsung semiconductor is a B/W CCD PROCESSOR. Below is the official datasheet preview.

📥 Download Datasheet

S5C7212X B/W CCD PROCESSOR by Samsung semiconductor - Datasheet Preview — Official preview page of the **S5C7212X** B/W CCD PROCESSOR datasheet (Samsung semiconductor).

Datasheet Details

Part number	S5C7212X
Manufacturer	Samsung semiconductor
File Size	230.94 KB
Description	B/W CCD PROCESSOR
Datasheet	S5C7212X_Samsungsemiconductor.pdf

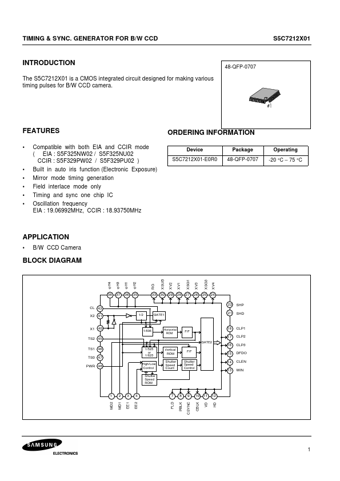

Additional preview pages of the S5C7212X datasheet.

S5C7212X Product details

Description

No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 Symbol MD2 MD1 EE1 EE2 VSS1 VDD1 FLD PBLK CSYNC CBLK VD HD WIN CLEN DFDO CLP3 CLP2 CLP1 VSS2 VDD2 SHD SHP VSS3 XV4 XSG3 V3 XSG1 XV1 XV2 XSUB VDD3 VSS4 I/O I I I I O O O O O O O O O O O O O O O O O O O O O Description CCIR/EIA mode selection NORMAL/MIRROR mode selection EE mode control input 1 EE mode control input 2 Ground +5V Field separation pulse Pre - blanking pulse Composite Sync.pulse Composite Blanki

Features

Compatible with both EIA and CCIR mode ( EIA : S5F325NW02 / S5F325NU02 CCIR : S5F329PW02 / S5F329PU02 ) Built in auto iris function (Electronic Exposure) Mirror mode timing generation Field interlace mode only Timing and sync one chip IC Oscillation frequency EIA : 19.06992MHz, CCIR : 18.93750MHz.
