S5K433LA 1/4 Optical Size 640x480(VGA) 3.3V/2.8V VGA CMOS Image Sensor

error corrected (LHOLD polarity). Timing chart added. STRB signal polarity error corrected SFCM timing diagram corrected Operation description added. DC timing characteristics specification changed AC timing characteristics specification changed STRB and LHOLD pins are deleted Minor description erro.

S5K433LA Features

* Process Technology: 0.35µm DPTM CMOS

* Optical Size: 1/4 inch

* Unit Pixel: 5.6 µm X 5.6 µm

* Effective Resolution: 640X480, VGA

* Line Progressive Read Out.

S5K433LA Datasheet (695.40 KB)

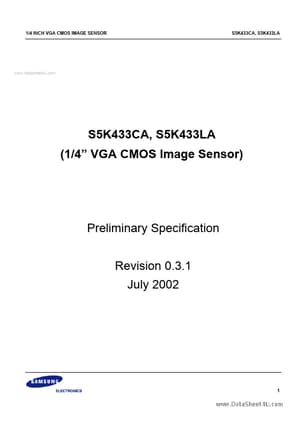

S5K433LA Datasheet Preview — Preview of S5K433LA PDF

Datasheet Details

Part number:

S5K433LA

Manufacturer:

Samsung semiconductor

File Size:

695.40 KB

Description:

1/4 optical size 640x480(vga) 3.3v/2.8v vga cmos image sensor.
