KA2201 - 1.2W AUDIO POWER AMP

Datasheet Summary

Features

  • Wide operating supply voltage: VCC = 3V~ 14V.
  • Medium output power. PO =1.2W at VCC =9V, RL =8Ω , THD = 10%.
  • Low quiescent circuit current (ICCQ = 4mA: Typ).
  • Good ripple rejection.
  • Minimum number of external parts required.

📥 Download Datasheet

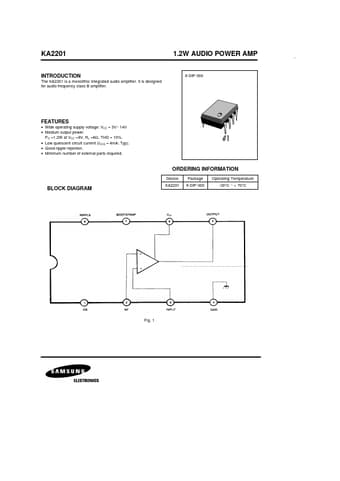

Datasheet preview – KA2201

Datasheet Details

Part number KA2201
Manufacturer Samsung
File Size 83.82 KB
Description 1.2W AUDIO POWER AMP
Datasheet download datasheet KA2201 Datasheet
Additional preview pages of the KA2201 datasheet.

📁 Similar Datasheet

  • KA2202 - LOW VOLTAGE DC MOTOR SPEED CONTROLLER (ETC)
  • KA2206 - KA2206 2.3W Dual Audio Power Amplifier (ETC)
  • KA2208HA1BAT - Fan (ETC)
  • KA2208HA2BAT - Fan (ETC)
  • KA2208HA3BAT - Fan (ETC)
  • KA2210 - KA2210 (ETC)
  • KA2211 - 5.8W Dual Power Amplifier (Samsung Electronics)
  • KA2224 - DUAL EQUALIZER AMPLIFIER WITH ALC (ETC)
  • KA22241 - DUAL EQUALIZER AMPLIFIER (Unisonic Technologies)
  • KA22293Q - MONOLITHIC INTEGRATED CIRCUIT FOR MUSIC CENTER (Samsung semiconductor)
Other Datasheets by Samsung
  • KA2206 - 2.3W Dual Audio Power Amplifier
  • KA22065 - 4.6W DUAL POWER AMP
  • KA22066 - 4.0W DUAL AUDIO POWER AMP.
  • KA22067 - 4.6W AUDIO POWER AMP (GENERAL DESCRIPTION)
  • KA2206B - 2.3W DUAL AUDIO POWER AMP
  • KA2206BN - 2-CHANNEL POWER AMPLIFIER
  • KA2209 - DUAL LOW VOLTAGE POWER AMPLIFIER
  • KA2209B - DUAL LOW VOLTAGE POWER AMP

Full PDF Text Transcription

Click to expand full text
KA2201 INTRODUCTION The KA2201 is a monolithic integrated audio amplifier. It is designed for audio frequency class B amplifier. 1.2W AUDIO POWER AMP 8-DIP-300 FEATURES • Wide operating supply voltage: VCC = 3V~ 14V • Medium output power. PO =1.2W at VCC =9V, RL =8Ω , THD = 10%. • Low quiescent circuit current (ICCQ = 4mA: Typ). • Good ripple rejection. • Minimum number of external parts required. ORDERING INFORMATION Device Package 8-DIP-300 Operating Temperature -20°C ~ + 70°C KA2201 BLOCK DIAGRAM Fig. 1 KA2201 ABSOLUTE MAXIMUM RATINGS Characteristic Supply Voltage Output Peak Current Power Dissipation Operating Temperature Storage Temperature Symbol VCC IPK PD T OPR T STG value 16 1.5 1.25 1.
