KS5520 Datasheet - Samsung

KS5520 ON SCREEN DISPLAY PROCESSOR

6.1 PIN CONFIGURATION DGND 1 SCK 2 RESETB 3 OSCIN 4 OSCOUT 5 CSB 6 SIN 7 LPF 8 CLAMPIN 9 AGND 10 PD OUT 11 VCO IN 12 24 DVDD 23 CSYNC 22 XTOUT 21 XTIN 20 SYD KS5520 19 CVOUT 18 SCCR 17 CVIN 16 AVDD 15 R CNTR 14 C NOD2 13 C NOD1 VID-97-D001 98-05-14 4 KS5520-XX 6.2 PIN DESCRIPTION Pin No. 1 2 .

VID - 97 - D001 JAN. 1998 SPECIFICATION for KS5520 SYSTEM LSI BUSINESS SAMSUNG ELECTRONICS CO. SPECIFICATION for KS5520 CONTENTS OUTLINE OF PRODUCT 3 3 3 3 3 4 4 6 Important Notice Copyright 1998 by SAMSUNG The information in this publication has been carefully checked and is believed to be accurate at the time of publication. Samsung assumes no responsibility, however, for possible errors or omissions, or for any consequences.

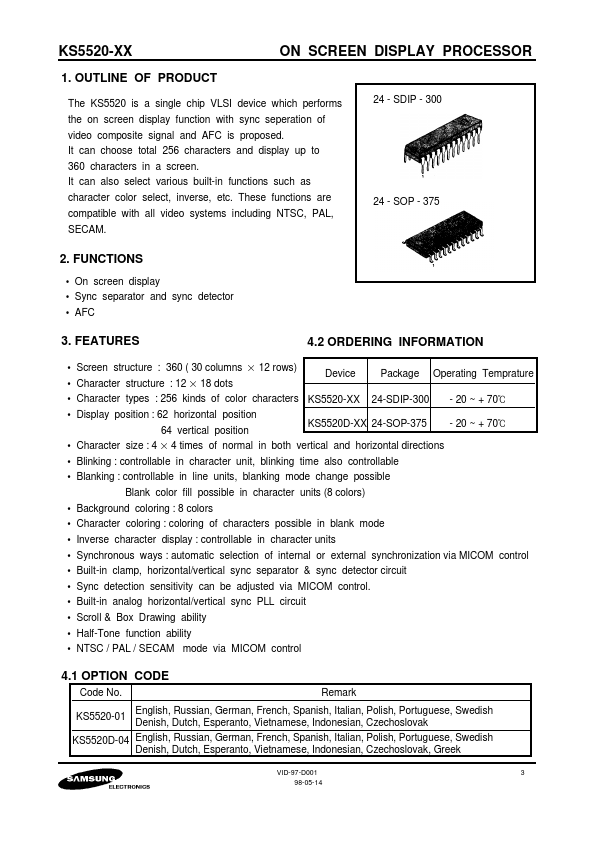

KS5520 Features

* OPTION CODE

* -

* ORDERING INFORMATION

KS5520 Datasheet (193.02 KB)
