BDL-1xx-T-A, BDL-125-G-E MACHINED BOARD STACKING STRIPS

Samtec

Description

BBS *116 *G *C F-210-1 BDL *120 *T *F BBL (3.89mm) .153" SL (2,54mm) .100" BBS, BBL, BHS, BBD, BDL SERIE.

📥 Download Datasheet

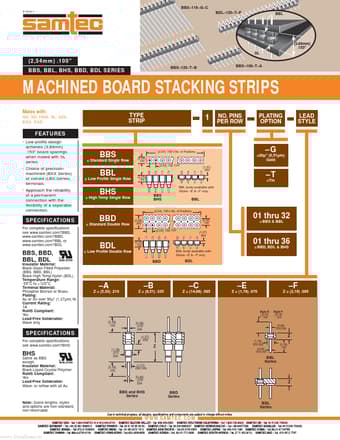

BDL-1xx-T-A Datasheet Preview — This datasheet PDF includes multiple part numbers: BDL-1xx-T-A, BDL-125-G-E. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BDL-1xx-T-A, BDL-125-G-E
Manufacturer: Samtec
File Size: 1.03 MB
Datasheet: BDL-125-G-E_Samtec.pdf
Description: MACHINED BOARD STACKING STRIPS
Note: This datasheet PDF includes multiple part numbers: BDL-1xx-T-A, BDL-125-G-E.
Please refer to the document for exact specifications by model.

Features

* Low proﬁle design achieves (3,89mm) .153" board spacings when mated with SL series.
* Choice of precision machined (BXX Series) or coined (LBS Series) terminals.
* Approach the reliability of a permanent connection with the ﬂexibility of a separable connection. BBS = Stand
