IDSD-05-D-5.00 SLIM BODY FLAT RIBBON IDC CABLES

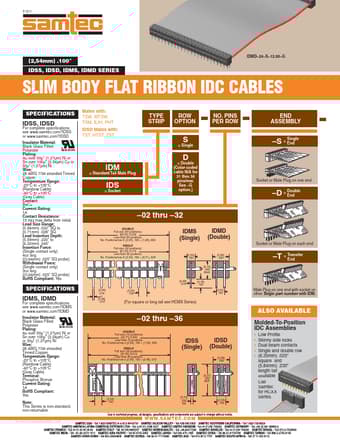

F-211 IDMD 24 S 12.00 G (2,54mm) .100" IDSS, IDSD, IDMS, IDMD SERIES SLIM BODY FLAT RIBBON IDC CABLES SPECIFICATIONS IDSS, IDSD Mates with: TSW, MTSW, TSM, EJH, PHT IDSD Mates with: TST, HTST, ZST TYPE STRIP ROW OPTION NO. PINS PER ROW END ASSEMBLY For complete speciﬁcations see www.samtec.com?IDSS or www.samtec.com?IDSD Insulator Material: Black Glass Filled Polyester Plating: Au over 50µ" (1,27µm) Ni or Sn over 100µ" (2,54µm) Cu or 50µ" (1,27µm) Ni Wir.

IDSD-05-D-500_Samtec.pdf

IDSD-05-D-5.00 Datasheet Preview — This datasheet PDF includes multiple part numbers: IDSD-05-D-5.00, IDSD-05-D-500. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDSD-05-D-5.00, IDSD-05-D-500

Manufacturer:

Samtec

File Size:

1.07 MB

Description:

Slim body flat ribbon idc cables.

Note:

This datasheet PDF includes multiple part numbers: IDSD-05-D-5.00, IDSD-05-D-500.
Please refer to the document for exact specifications by model.
