SEAF8 ULTRA HIGH DENSITY OPEN PIN FIELD

F-212-1 SEAF8 30 05.0 S 06 2 K TR (0,80 mm) .0315" SEAF8 SERIES SEAF8 30 05.0 S 04 2 K TR ULTRA HIGH DENSITY OPEN PIN FIELD SPECIFICATIONS For complete speciﬁcations and recommended PCB layouts see www.samtec.com?SEAF8 Insulator Material: Black LCP Contact Material: Copper Alloy Operating Temp Range: -55°C to +125°C Plating: Au or Sn over 50µ" (1,27 µm) Ni Working Voltage: 220 VAC .

SEAF8_Samtec.pdf

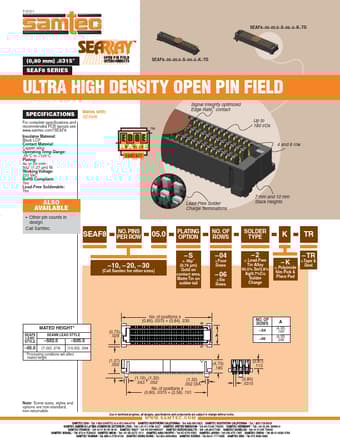

SEAF8 Datasheet Preview — Preview of SEAF8 PDF

Datasheet Details

Part number:

SEAF8

Manufacturer:

Samtec

File Size:

0.99 MB

Description:

Ultra high density open pin field.
