TFM-110-02-S-D-LC, TFML-125-02-S-D-WT, MICRO MATE HEADERS

F-208 TFM *120 *12 *S *D *A TFML *125 *02 *S *D *WT TFM *110 *02.

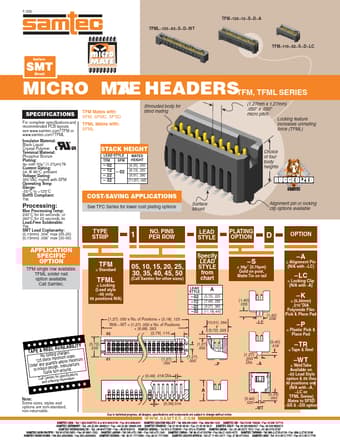

datasheet Preview Page 1 from Datasheet4u.com

TFML-125-02-S-D-WT-Samtec.pdf

TFM-110-02-S-D-LC Datasheet Preview — This datasheet PDF includes multiple part numbers: TFM-110-02-S-D-LC, TFML-125-02-S-D-WT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TFM-110-02-S-D-LC, TFML-125-02-S-D-WT

Manufacturer:

Samtec

File Size:

413.32 KB

Description:

MICRO MATE HEADERS

Note:

This datasheet PDF includes multiple part numbers: TFM-110-02-S-D-LC, TFML-125-02-S-D-WT.
Please refer to the document for exact specifications by model.

Applications

* See TFC Series for lower cost plating options Surface Mount Alignment pin or locking clip options available Processing: Max Processing Temp: 230°C for 60 seconds, or 260°C for 20 seconds 3x Lead-Free Solderable: Yes SMT Lead Coplanarity: (0,10mm) .004" max (05-25) (0,15mm) .006" max (30-50) TYPE S
