SWP75N75 Datasheet - Samwin

SWP75N75 N-channel Enhanced mode TO-220 MOSFET

This power MOSFET is produced with advanced technology of SAMWIN. This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics. 3 Order Codes Item Sales Type 1 SW P 75N7.

SWP75N75 Features

* High ruggedness

* Low RDS(ON) (Typ 6mΩ)@VGS=10V

* Low Gate Charge (Typ 126nC)

* Improved dv/dt Capability

* 100% Avalanche Tested

* ApplicationSynchronous Rectification, Li Battery Protect Board, DC-DC N-channel Enhanced mode TO-220 MOSFET TO-220 12 3 1. Gate 2. Drain 3.

SWP75N75 Datasheet (561.45 KB)

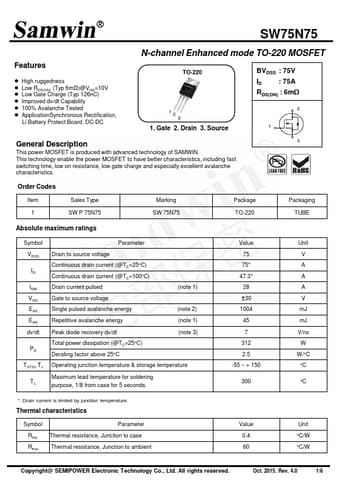

SWP75N75 Datasheet Preview — Preview of SWP75N75 PDF

Datasheet Details

Part number:

SWP75N75

Manufacturer:

Samwin

File Size:

561.45 KB

Description:

N-channel enhanced mode to-220 mosfet.
