STR9012 - 5-Terminal / Low Dropout Voltage Dropper

Datasheet Summary

Features

  • 5-terminal regulator with two screw mount package Output current: 4.0A Low dropout voltage :VDIF≤1V (at IO=4A) Fine adjustment of output voltage Output ON/OFF control Built-in foldback overcurrent protection circuits s.

📥 Download Datasheet

Datasheet preview – STR9012

Datasheet Details

Part number STR9012
Manufacturer Sanken
File Size 53.24 KB
Description 5-Terminal / Low Dropout Voltage Dropper
Datasheet download datasheet STR9012 Datasheet
Additional preview pages of the STR9012 datasheet.

📁 Similar Datasheet

  • STR910FAM32 - 16/32-Bit Flash MCU (STMicroelectronics)
  • STR910FAW32 - 16/32-Bit Flash MCU (STMicroelectronics)
  • STR910FAZ32 - 16/32-Bit Flash MCU (STMicroelectronics)
  • STR911FAM42 - 16/32-Bit Flash MCU (STMicroelectronics)
  • STR911FAM44 - 16/32-Bit Flash MCU (STMicroelectronics)
  • STR911FAM46 - 16/32-Bit Flash MCU (STMicroelectronics)
  • STR911FAM47 - 16/32-Bit Flash MCU (STMicroelectronics)
  • STR911FAW42 - 16/32-Bit Flash MCU (STMicroelectronics)
  • STR911FAW44 - 16/32-Bit Flash MCU (STMicroelectronics)
  • STR911FAW46 - 16/32-Bit Flash MCU (STMicroelectronics)
Other Datasheets by SanKen

Full PDF Text Transcription

Click to expand full text

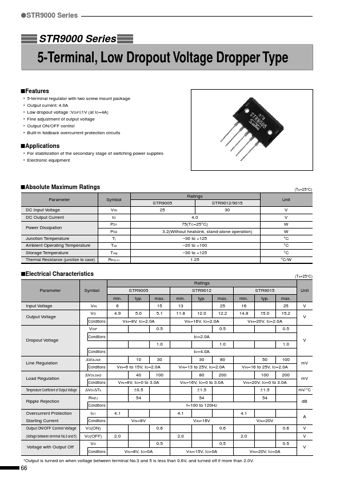

qSTR9000 Series STR9000 Series 5-Terminal, Low Dropout Voltage Dropper Type sFeatures • • • • • • 5-terminal regulator with two screw mount package Output current: 4.0A Low dropout voltage :VDIF≤1V (at IO=4A) Fine adjustment of output voltage Output ON/OFF control Built-in foldback overcurrent protection circuits sApplications • For stabilization of the secondary stage of switching power supplies • Electronic equipment sAbsolute Maximum Ratings Parameter DC Input Voltage DC Output Current Power Dissipation Junction Temperature Ambient Operating Temperature Storage Temperature Thermal Resistance (junction to case) Symbol VIN IO PD1 PD2 Tj Top Tstg Rth(j-c) Ratings STR9005 25 4.0 75(TC=25°C) 3.2(Without heatsink, stand-alone operation) –30 to +125 –20 to +100 –30 to +125 1.
