DF30AA160 DIODE

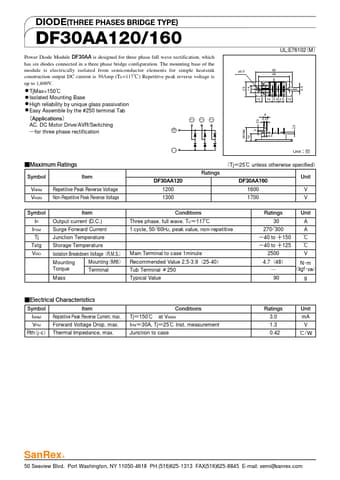

DIODE(THREE PHASES BRIDGE TYPE) DF30AA120/160 UL;E76102 M Power Diode Module DF30AA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 30Amp (Tc=117 ) Repetitive peak reverse voltage is up to 1,600V. TjMax=150 Isolated Mounting Base High reliability by unique glass passivation Easy Assem.

DF30AA120_SanRexCorporation.pdf

DF30AA160 Datasheet Preview — This datasheet PDF includes multiple part numbers: DF30AA160, DF30AA120. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DF30AA160, DF30AA120

Manufacturer:

SanRex Corporation

File Size:

90.73 KB

Description:

Diode.

Note:

This datasheet PDF includes multiple part numbers: DF30AA160, DF30AA120.
Please refer to the document for exact specifications by model.
