QCB50A40 Datasheet - SanRex Corporation

QCB50A40 (QCB50A40 / QCB50A60) TRANSISTOR MODULE

www.DataSheet4U.com TRANSISTOR MODULE QCA50B/QCB50A40/60 UL;E76102 M QCA50B and QCB50A are dual Darlington power transistor modules which have series-connected high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode. IC 50A, VCEX 400/600V Low saturation voltage for higher efficiency. Isolated mounting base VEBO 10V for faster switching speed. Applications Motor Control VVVF , AC/DC Servo, UPS, Switching Power Supply, Ultrasonic Application Q.

QCB50A40_SanRexCorporation.pdf

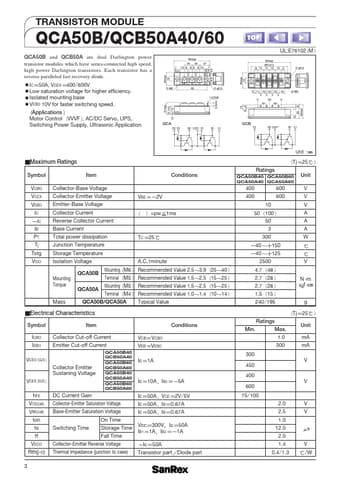

Preview of QCB50A40 PDF
QCB50A40 Datasheet Preview Page 2

Datasheet Details

Part number:

QCB50A40

Manufacturer:

SanRex Corporation

File Size:

437.94 KB

Description:

(qcb50a40 / qcb50a60) transistor module.
