PD25FG160 THYRISTOR MODULE

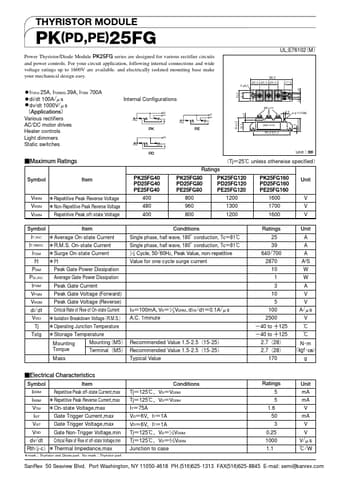

THYRISTOR MODULE PK(PD,PE)25FG Power Thyristor/Diode Module PK25FG series are designed for various rectifier circuits and power controls. For your circuit application, following internal connections and wide voltage ratings up to 1600V are available. and electrically isolated mounting base make your mechanical design easy. ˔ IT(AV) 25A, IT(RMS) 39A, ITSM 700A ˔ di/dt 100A/Жs ˔ dv/dt 1000V/Жs ʢApplicationsʣ Various rectifiers AC/DC motor drives Heater controls Light dimmers Static switches In.

PD25FG160 Datasheet (94.14 KB)
