SDS120J010D3

SiC Schottky Barrier Diode

SDS120J010D3 General Description

VRRM 1200 V IF(135℃) 17 A QC 55 nC TO-252-2L PIN 1 PIN 2 CASE Marking DS120010D3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) Reverse Voltage (Surge peak) Reverse voltage (DC) VRRM VRSM VDC Continuous forward current IF .

SDS120J010D3 Datasheet (475.36 KB)

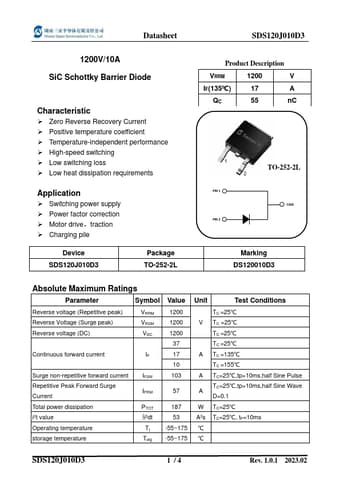

SDS120J010D3 Datasheet Preview — Preview of SDS120J010D3 PDF

Datasheet Details

Part number:

SDS120J010D3

Manufacturer:

Sanan

File Size:

475.36 KB

Description:

Sic schottky barrier diode.
Datasheet SDS120J010D3 1200V/10A SiC Schottky Barrier Diode Characteristic

* Zero Reverse Recovery Current

* Positive temperature c.
