SDS120J020H3 Datasheet - Sanan

SiC Schottky Barrier Diode

SDS120J020H3 General Description

VRRM 1200 V IF(135℃) 29 A QC 108 nC TO-247-2L Device SDS120J020H3 Package TO-247-2L Marking DS120020H3 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) Reverse Voltage (Surge peak) Reverse voltage (DC) VRRM VRSM VDC Continuous.

SDS120J020H3 Datasheet (318.65 KB)

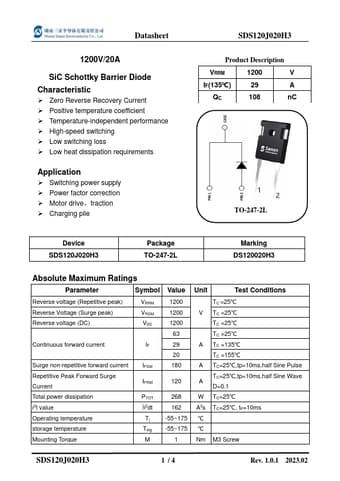

SDS120J020H3 Datasheet Preview — Preview of SDS120J020H3 PDF

Datasheet Details

Part number:

SDS120J020H3

Manufacturer:

Sanan

File Size:

318.65 KB

Description:

Sic schottky barrier diode.
Datasheet 1200V/20A SiC Schottky Barrier Diode Characteristic Zero Reverse Recovery Current Positive temperature coefficient <.
