GBPC50005 - Single-Phase 50A Glass Passivated Bridge Rectifier

Sangdest Microelectronics

📥 Download Datasheet

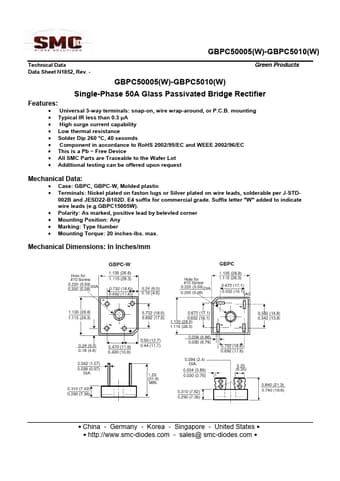

GBPC50005 Datasheet Preview — Preview of GBPC50005 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: GBPC50005
Manufacturer: SangdeSTMicroelectronics ↗
File Size: 362.04 KB
Datasheet: GBPC50005-SangdestMicroelectronics.pdf
Description: Single-Phase 50A Glass Passivated Bridge Rectifier

GBPC50005 Product details

Features

Universal 3-way terminals: snap-on, wire wrap-around, or P. C. B. mounting.
Typical IR less than 0.3 μA.
High surge current capability.
Low thermal resistance.
Solder Dip 260 °C, 40 seconds.
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
This is a Pb.
Free Device.
All SMC Parts are Traceable to the Wafer Lot.
Additional testing can be offered upon request Mechanical Data:.
Case: GBPC, GBPC-W, Molded plastic.
Termin.
