SB260, SB220, SCHOTTKY RECTIFIER

SB220 THRU SB260 Technical Data Data Sheet N0870, Rev.B SB220 THRU SB260 SCHOTTKY RECTIFIER .

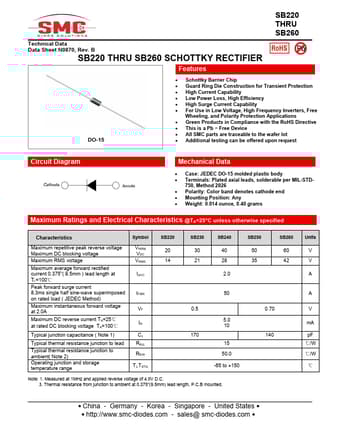

datasheet Preview Page 1 from Datasheet4u.com

SB220-SangdestMicroelectronics.pdf

SB260 Datasheet Preview — This datasheet PDF includes multiple part numbers: SB260, SB220. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SB260, SB220

Manufacturer:

SangdeSTMicroelectronics ↗

File Size:

344.54 KB

Description:

SCHOTTKY RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SB260, SB220.
Please refer to the document for exact specifications by model.

Features

* DO-15
* Schottky Barrier Chip
* Guard Ring Die Construction for Transient Protection
* High Current Capability
* Low Power Loss, High Efficiency
* High Surge Current Capability
* For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applic

Applications

* Green Products in Compliance with the RoHS Directive
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be offered upon request Circuit Diagram Mechanical Data
* Case: JEDEC DO-15 molded plastic body
* Terminals:
