Download the DB107 datasheet PDF.
This datasheet also covers the DB101 variant, as both devices belong to the same single phase 1.0amp glass passivated bridge rectifier family and are provided as variant models within a single manufacturer datasheet.
Features
- Glass passivated die construction.
- Low forward voltage drop.
- High current capability.
- High surge current capability.
- Plastic material-UL flammability 94V-0.
- This is a Pb.
- Free Device.
- All SMC parts are traceable to the wafer lot.
- Additional testing can be offered upon request
Circuit Diagram
Mechanical Data.
- Case: DB-M, Molded plastic.
- Terminals: Plated leads solderable per MIL-STD-202,
Method 208.
- Polarity: as marked on case.

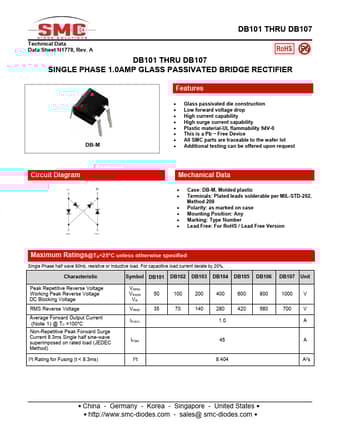

DB107 Datasheet
