SE005N Error Amplifier

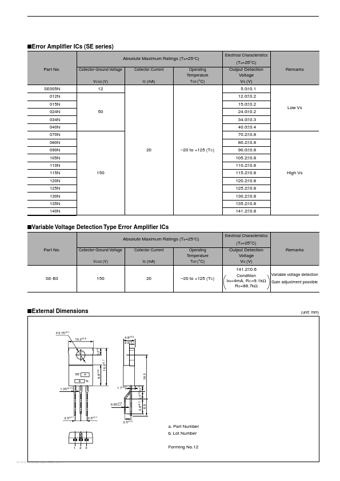

sError Amplifier ICs (SE series) Absolute Maximum Ratings (Ta=25°C) Part No. SE005N 012N 015N 024N 034N 040N 070N 080N 090N 105N 110N 115N 120N 125N 130N 135N 140N Collector-Ground Voltage VCGO (V) 12 Collector Current Ic (mA) 50 Operating Temperature TOP (°C) 20 20 to +125 (TC) 150 Electrical Characteristics (Ta=25°C) Output Detection Voltage VS (V) 5.0±0.1 12.0±0.2 15.0±0.2 24.0±0.2 34.0±0.3 40.0±0.4 70.2±0.8 80.2±0.8 90.0±0.8 105.2±0.8 110.2±0.8 115.2±0.8 120.2±0.8 125.2±0.8 .
