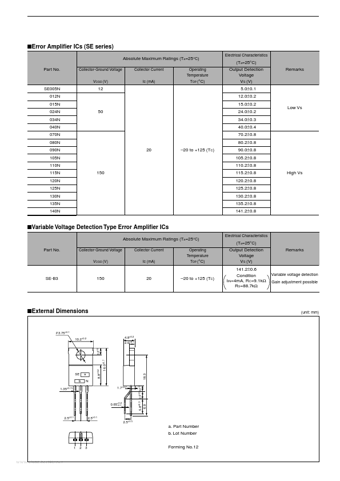

SE012N
s Error Amplifier ICs (SE series)
Absolute Maximum Ratings (Ta=25°C)
Part No.
SE005N 012N 015N 024N 034N 040N 070N 080N 090N 105N 110N 115N 120N 125N 130N 135N 140N
Collector-Ground Voltage
VCGO (V) 12
Collector Current Ic (m A)
Operating Temperature
TOP (°C)
- 20 to +125 (TC) 150
Electrical Characteristics (Ta=25°C)
Output Detection Voltage VS (V) 5.0±0.1 12.0±0.2 15.0±0.2 24.0±0.2 34.0±0.3 40.0±0.4 70.2±0.8 80.2±0.8 90.0±0.8
105.2±0.8 110.2±0.8 115.2±0.8 120.2±0.8 125.2±0.8 130.2±0.8 135.2±0.8 141.2±0.8
Remarks Low Vs
High Vs s Variable Voltage Detection Type Error Amplifier ICs
Absolute Maximum Ratings (Ta=25°C)
Part No.
Collector-Ground Voltage VCGO (V)
Collector Current Ic (m A)
Operating Temperature
TOP (°C)
SE-B3
- 20 to +125 (TC)
Electrical Characteristics
(Ta=25°C)
Output Detection Voltage
VS (V)
Remarks
141.2±0.6
Condition IIN=4m A, RC=9.1kΩ
RS=88.7kΩ
Variable voltage detection Gain adjustment possible s External Dimensions
φ 3.75±0.1
10.2±0.2...
