STR-A6069H - Off-Line PWM Controllers

Download the STR-A6069H datasheet PDF. This datasheet also covers the STR-A6000H variant, as both devices belong to the same off-line pwm controllers family and are provided as variant models within a single manufacturer datasheet.

Description

The STR-A6000 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

The low standby power is accomplished by the automatic switching between the PWM operation in normal operation and the burst-oscillation under light load conditions.

Features

  • Current Mode Type PWM Control.
  • Brown-In and Brown-Out function.
  • Auto Standby Function No Load Power Consumption < 25mW.
  • Operation Mode Normal Operation ----------------------------- PWM Mode Standby ---------------------------- Burst Oscillation Mode.
  • Random Switching Function.
  • Slope Compensation Function.
  • Leading Edge Blanking Function.
  • Bias Assist Function.
  • Audible Noise Suppression function during Standby mode.
  • Protections Overcurrent Protect.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STR-A6000H_SankenElectric.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number STR-A6069H
Manufacturer Sanken
File Size 611.79 KB
Description Off-Line PWM Controllers
Datasheet download datasheet STR-A6069H Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STR-A6069HD Off-Line PWM Controllers Sanken
STR-A6069HZ Off-Line PWM Controllers Sanken
STR-A6069MZ Off-Line PWM Controllers Sanken
STR-A6061HD Off-Line PWM Controllers Sanken
STR-A6061HZ Off-Line PWM Controllers Sanken

Other Datasheets by Sanken

Part Number Description
STR-A6061H Off-Line PWM Controllers
STR-A6062H Off-Line PWM Controllers
STR-A6000H STR-A6000H Series PWM Off-Line Switching Regulator ICs
STR-A6052M Off-Line PWM Controllers
STR-A6059H Off-Line PWM Controllers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

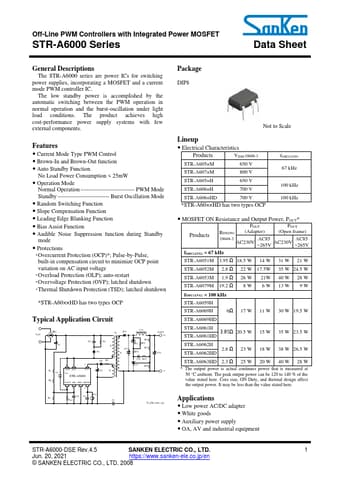

Off-Line PWM Controllers with Integrated Power MOSFET STR-A6000 Series General Descriptions The STR-A6000 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC. The low standby power is accomplished by the automatic switching between the PWM operation in normal operation and the burst-oscillation under light load conditions. The product achieves high cost-performance power supply systems with few external components.
