2SA1493 Silicon PNP Transistor

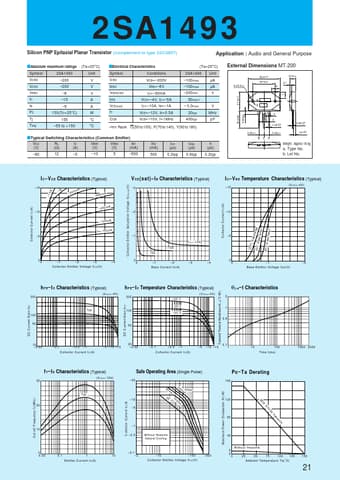

2SA1493 Silicon PNP Epitaxial Planar Transistor (Complement to type 2SC3857) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SA1493 200 200 6 15 5 150(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C Application : Audio and General Purpose (Ta=25°C) 2SA1493 100max 100max 200min 50min∗ 3.0max 20typ 400typ V MHz pF 20.0min 4.0max sElectrical Characteristics Symbol ICBO IEBO V(BR)C.

2SA1493 Datasheet (24.83 KB)
