Darlington
sAbsolute maximum ratings (Ta=25°C)
Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SD1785 120 120 6 6(Pulse10) 1 30(Tc=25°C) 150 –55 to +150 Unit V V V A A W °C °C

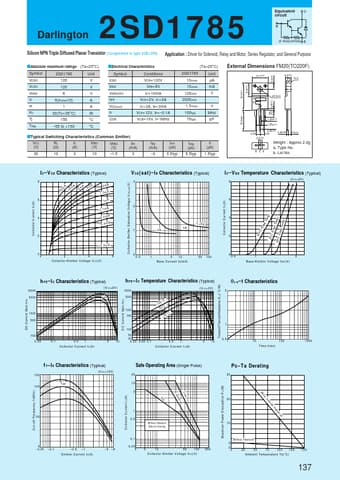

2SD1785
sElectrical Characteristics
Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) fT COB Conditions VCB=120V VEB=6V IC=10mA VCE=2V, IC=3A IC=2A, IB=3mA VCE=12V, IE=–0.1A VCB=10V, f=1MHz 2SD1785 10max 10max 120min 2000min 1.5max 100typ 70typ V MHz pF
13.0min
Equivalent circuit
B
C
(2.5k Ω)(200 Ω) E
Silicon NPN Triple Diffused Planar Transistor (Complement to type 2SB1258)
Application : Driver for Solenoid, Relay and Motor, Series Regulator, and General Purpose
(Ta=25°C) Unit
External Dimensions FM20(TO220F)
4.0±0.2 10.1±0.2 4.2±0.2 2.8 c0.5
µA
V
16.9±0.3 8.4±0.2
mA
1.35±0.15 1.35±0.15 0.85 +0.2 -0.1 0.45 +0.2 -0.1 2.54 2.
D1785 Datasheet
