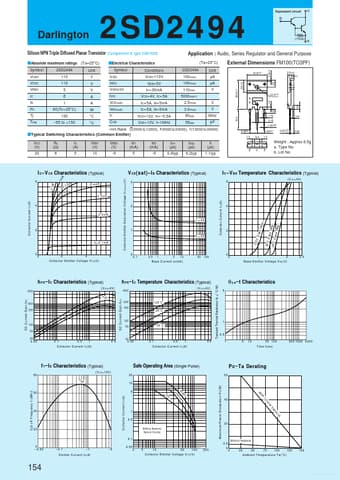

D2494
Equivalent circuit
Darlington
2SD2494 s Electrical Characteristics
Symbol ICBO IEBO V(BR)CEO h FE VCE(sat) VBE(sat) f T COB Conditions VCB=110V VEB=5V IC=30m A VCE=4V, IC=5A IC=5A, IB=5m A IC=5A, IB=5m A VCE=12V, IE=- 0.5A VCB=10V, f=1MHz 2SD2494 100max 100max 110min 5000min∗ 2.5max 3.0max 60typ 55typ V V
(7 0 Ω )
Silicon NPN Triple Diffused Planar Transistor (plement to type 2SB1625) s Absolute maximum ratings (Ta=25°C)
Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SD2494 110 110 5 6 1 60(Tc=25°C) 150
- 55 to +150 Unit V V V A A W °C °C
Application : Audio, Series Regulator and General Purpose
(Ta=25°C) Unit
External Dimensions FM100(TO3PF)
0.8±0.2 15.6±0.2 5.5±0.2 3.45 ±0.2 5.5 ø3.3±0.2 1.6
µA
23.0±0.3
9.5±0.2
µA a b
MHz p F
1.75 2.15 1.05 +0.2 -0.1 5.45±0.1 1.5 4.4 5.45±0.1 1.5 0.65 +0.2 -0.1
∗h FE Rank O(5000 to 12000), P(6500 to 20000), Y(15000 to 30000) s Typical Switching Characteristics (mon Emitter) VCC (V) 30 RL (Ω) 6 IC (A) 5 VBB1 (V) 10 VBB2 (V)
- 5...
