D2642 Datasheet - Sanken electric

Datasheet Details

Part number:

D2642

Manufacturer:

Sanken ↗ electric

File Size:

58.27 KB

Description:

2SD2642

Equivalent circuit C Darlington 2SD2642 sElectrical Characteristics Symbol ICBO IEBO Conditions VCB=110V VEB=5V IC=30mA VCE=4V, IC=5A IC=5A, IB=5mA IC=5A, IB=5mA VCE=12V, IE= *0.5A VCB=10V, f=1MHz Ratings 100max 100max 110min 5000min∗ 2.5max 3.0max 60typ 55typ V V 13.0min B (7 0 Ω ) E

D2642_Sankenelectric.pdf

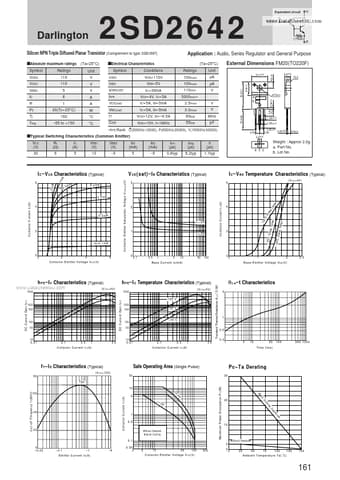

Preview of D2642 PDF

D2642, 2SD2642

Equivalent circuit C Darlington 2SD2642 sElectrical Characteristics Symbol ICBO IEBO Conditions VCB=110V VEB=5V IC=30mA VCE=4V, IC=5A IC=5A, IB=5mA IC=5A, IB=5mA VCE=12V, IE= 0.5A VCB=10V, f=1MHz Ratings 100max 100max 110min 5000min∗ 2.5max 3.0max 60typ 55typ V V 13.0min B (7 0 Ω ) E Silicon NPN Triple Diffused Planar Transistor (Complement to type 2SB1687) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Ratings 110 110 5 6 1 30(Tc=25°C) 150 55
