FME-24L Datasheet - Sanken electric

FME-24L Schottky Barrier Diodes

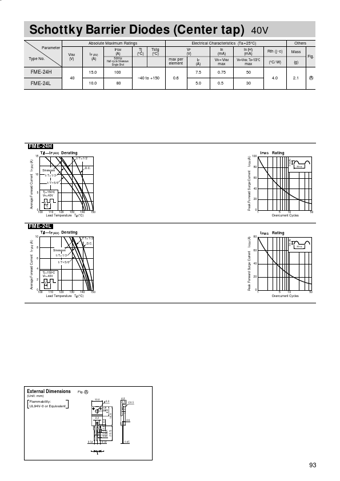

Schottky Barrier Diodes (Center tap) Absolute Maximum Ratings Parameter Type No. VRM (V) I F (AV) (A) IFSM (A) 50Hz Half-cycle Sinewave Single Shot 40V Others Rth ( j-c) (°C/ W) Mass Fig. (g) Electrical Characteristics (Ta = 25°C) Tstg (°C) max per element VF (V) IF (A) IR (mA) VR = VRM max IR (H) (mA) VR=VRM, Ta=100°C max Tj (°C) FME-24H 40 15.0 10.0 100 40 to +150 80 0.6 7.5 5.0 0.75 0.5 50 4.0 30 2.1 A FME-24L FME-24H T I F(AV) Derating Average Forward Current I F.

FME-24L_Sankenelectric.pdf

Preview of FME-24L PDF

Datasheet Details

Part number:

FME-24L

Manufacturer:

Sanken ↗ electric

File Size:

17.62 KB

Description:

Schottky barrier diodes.
