FML-G12S - Fast Recovery Diode

Datasheet Summary

Description

The FML-G12S is a fast recovery diode of 200 V / 5 A.

The maximum trr of 40 ns is realized by optimizing a life-time control.

Features

  • VRM---------------------------------------------------- 200 V.
  • IF(AV)------------------------------------------------------ 5 A.
  • VF -----------------------------------------------------0.98 V.
  • trr1------------------------------------------------------- 40 ns.
  • Bare Lead Frame: Pb-free (RoHS Compliant).
  • Flammability: Equivalent to UL94V-0 Package TO220F-2L.

📥 Download Datasheet

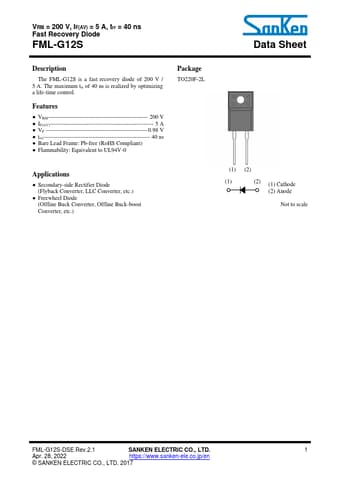

Datasheet preview – FML-G12S

Datasheet Details

Part number FML-G12S
Manufacturer Sanken electric
File Size 227.09 KB
Description Fast Recovery Diode
Datasheet download datasheet FML-G12S Datasheet
Additional preview pages of the FML-G12S datasheet.

📁 Similar Datasheet

  • FML-G13L - Ultra fast Rectifier (INCHANGE)
  • FML-22R - 10.0 Ampere Dual Unipolar/Common Anode Polarity Ultrafast Recovery Diode (Thinki Semiconductor)
  • FML-23R - 10.0 Ampere Dual Unipolar/Common Anode Polarity Ultrafast Recovery Diode (Thinki Semiconductor)
  • FML-23S - Ultrafast Rectifier (INCHANGE)
  • FML-24R - 10.0 Ampere Dual Unipolar/Common Anode Polarity Ultrafast Recovery Diode (Thinki Semiconductor)
  • FML-4202S - Fast Recovery Rectifier (INCHANGE)
  • FML-4202S - Fast Recovery Diode (Sanken)
  • FML0H333ZF - Supercapacitors (KEMET)
  • FML120B - SUPER LOW Vf SCHOTTKY BARRIER RECTIFIER (RECTRON)
  • FML130B - SUPER LOW Vf SCHOTTKY BARRIER RECTIFIER (RECTRON)
Other Datasheets by Sanken electric
  • FML-G13S - Fast Recovery Diode
  • FML-G14S - Ultra-Fast-Recovery Rectifier Diodes
  • FML-G16S - Ultra-Fast-Recovery Rectifier Diodes
  • FML-G22S - Ultra-Fast-Recovery Rectifier Diodes
  • FML-G26S - Ultra-Fast-Recovery Rectifier Diodes
  • FML-12S - Ultra-Fast-Recovery Rectifier Diodes
  • FML-13S - Ultra-Fast-Recovery Rectifier Diodes
  • FML-14S - Ultra-Fast-Recovery Rectifier Diodes

Full PDF Text Transcription

Click to expand full text
VRM = 200 V, IF(AV) = 5 A, trr = 40 ns Fast Recovery Diode FML-G12S Description The FML-G12S is a fast recovery diode of 200 V / 5 A. The maximum trr of 40 ns is realized by optimizing a life-time control. Features ● VRM---------------------------------------------------- 200 V ● IF(AV)------------------------------------------------------ 5 A ● VF -----------------------------------------------------0.98 V ● trr1------------------------------------------------------- 40 ns ● Bare Lead Frame: Pb-free (RoHS Compliant) ● Flammability: Equivalent to UL94V-0 Package TO220F-2L Applications ● Secondary-side Rectifier Diode (Flyback Converter, LLC Converter, etc.) ● Freewheel Diode (Offline Buck Converter, Offline Buck-boost Converter, etc.
