SAP10N - Darlington transistors with built-in temperature compensation diodes for audio amplifier applications

Product Overview

Sanken electric

Part number	SAP10N
Manufacturer	Sanken electric
File Size	135.89 KB
Description	Darlington transistors with built-in temperature compensation diodes for audio amplifier applications
Datasheet	SAP10N Datasheet
Note	This datasheet PDF includes multiple part numbers: SAP10N, SAP. Please refer to the document for exact specifications by model.

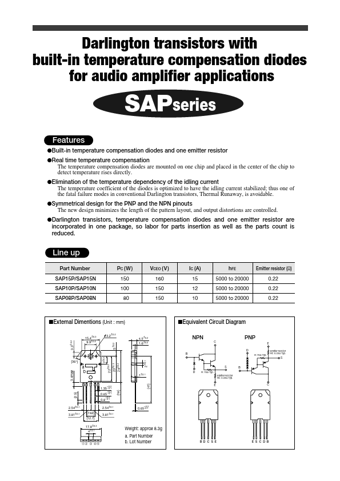

Additional preview pages of the SAP10N datasheet.

qBuilt-in temperature compensation diodes and one emitter resistor qReal time temperature compensation The temperature compensation diodes are mounted on one chip and placed in the center of the chip to detect temperature rises directly. qElimination of the temperature dependency of the idling current The temperature coefficient of the diodes is optimized to have the idling current stabilized; thus one of the fatal failure modes in conventional Darlington transistors, Thermal Runaway, is avoidab.
