SEL1024 - 1x5 Rectangular LED

📥 Download Datasheet

Datasheet preview – SEL1024

Datasheet Details

Part number SEL1024
Manufacturer Sanken electric
File Size 50.28 KB
Description 1x5 Rectangular LED
Datasheet download datasheet SEL1024 Datasheet
Additional preview pages of the SEL1024 datasheet.

📁 Similar Datasheet

  • SEL1020 - Square display LEDs (Sanken)
  • SEL1010 - 5 round-type standard LEDs (Sanken)
  • SEL1011 - LED (Sanken)
  • SEL1013 - LED (Sanken)
  • SEL1050 - LED (Sanken)
  • SEL1110R - 5 round-type standard LEDs (Sanken)
  • SEL1110S - 5 round-type standard LEDs (Sanken)
  • SEL1110W - 5 round-type standard LEDs (Sanken)
  • SEL1111R - Round-type special configuration LEDs (Sanken)
  • SEL1111R - (SEL1xx1x) Cylindrical LED (Sanken)
Other Datasheets by Sanken electric
  • SEL1021 - 3x5 Rectangular LED
  • SEL1022 - 2.5x5 Rectangular LED
  • SEL1015 - 5f Round Narrow-directivity LED
  • SEL1050M - 5phi Round Narrow-directivity LED
  • SEL1053M - 4.6x5.6phi Egg-shaped LED
  • SEL2011 - 3phi Cylindrical LED
  • SEL2013 - 3phi Inverted-cone LED
  • SEL4017 - 2phi Round Special-shaped LED

Full PDF Text Transcription

Click to expand full text

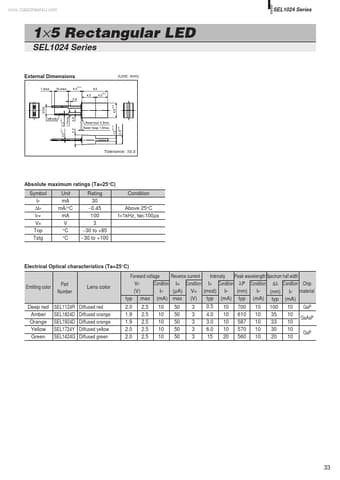

www.DataSheet4U.com SEL1024 Series 1×5 Rectangular LED SEL1024 Series External Dimensions 1.0min 19.0min 4.5 0.8 ±0.5 (Unit: mm) 8.5 4.5 4.0 ±0.2 (2.54) 1.1max ±0.1 Cathode 0.8 0.5 Resin burr 0.3min ±0.15 4.9 ±0.1 ±0.2 3.2 Resin heap 1.5max 0.5 Tolerance: ±0.3 Absolute maximum ratings (Ta=25°C) Symbol IF ∆IF IFP VR Top Tstg Unit mA mA/°C mA V °C °C Rating 30 −0.
