SI-8150S - DC/DC Converter

Features

  • Compact full-mold package (equivalent to TO220) Output current: 3.0A High efficiency: 79 to 91% Requires only 4 external components Phase correction and output voltage adjustment performed internally Built-in reference oscillator (60kHz) Built-in overcurrent and thermal protection circuits Built-in soft start circuit (output ON/OFF control) s.

📥 Download Datasheet

Datasheet Details

Part number SI-8150S
Manufacturer Sanken
File Size 63.76 KB
Description DC/DC Converter
Datasheet download datasheet SI-8150S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI-8150S Separate Excitation Step-down DC-DC Converter ETC
SI-81512Z SI-80000Z ETC
SI-8105QL Step-Down Switching Regulator Sanken
SI-81206Z SI-80000Z ETC
SI-8120JD Buck Converter Sanken

Other Datasheets by Sanken

Part Number Description
SI-81506Z SI-80000Z
SI-81512Z SI-80000Z
SI-8153B (SI8000B Series) Switching Voltage Regulators
SI-81206Z SI-80000Z
SI-8120E DC/DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

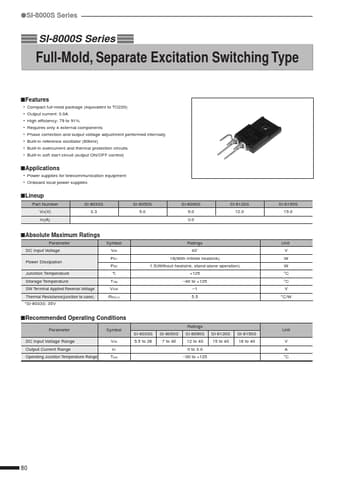

qSI-8000S Series SI-8000S Series Full-Mold, Separate Excitation Switching Type sFeatures • • • • • • • • Compact full-mold package (equivalent to TO220) Output current: 3.0A High efficiency: 79 to 91% Requires only 4 external components Phase correction and output voltage adjustment performed internally Built-in reference oscillator (60kHz) Built-in overcurrent and thermal protection circuits Built-in soft start circuit (output ON/OFF control) sApplications • Power supplies for telecommunication equipment • Onboard local power supplies sLineup Part Number VO(V) IO(A) SI-8033S 3.3 SI-8050S 5.0 SI-8090S 9.0 3.0 SI-8120S 12.0 SI-8150S 15.
