TF321S - TO-220F 3A Thyristor

Sanken electric

📥 Download Datasheet

TF321S Datasheet Preview — Preview of TF321S PDF

Datasheet Details

Part number	TF321S
Manufacturer	Sanken electric
File Size	30.43 KB
Description	TO-220F 3A Thyristor
Datasheet	TF321S_Sankenelectric.pdf

TF321S Product details

Features

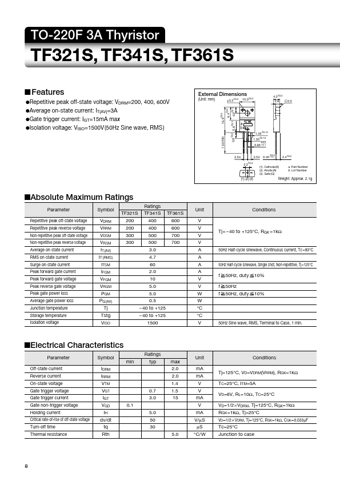

qRepetitive peak off-state voltage: VDRM=200, 400, 600V qAverage on-state current: IT(AV)=3A qGate trigger current: IGT=15mA max qIsolation voltage: VISO=1500V(50Hz Sine wave, RMS) 13.0 min External Dimensions (Unit: mm) φ 3.3±0.2 8.4±0.2 4.0±0.2 10.0±0.2 4.2±0.2 C 0.5 2.8 16.9± 0.3 3.9±0.2 0.8±0.2 a b 1.35±0.15 1.35± +0.2 0.85.
0.1 0.15 2.54 2.2±0.2 2.54 +0.2 0.45.
0.1 2.4± 0.2 (1). Cathode (K) (2). Anode (A) (3). Gate (G) a. Part Number b. Lot Number (1) (2) (3.
