TM1261
TM1261 is TO-220F 12A Triac manufactured by Sanken.
TO-220F 12A Triac

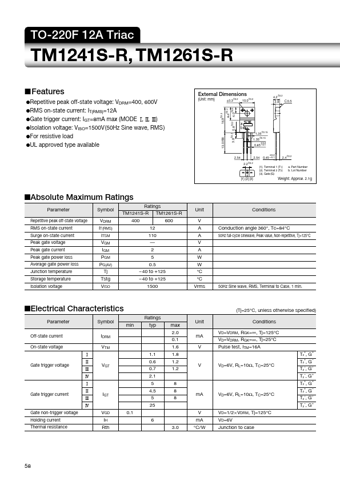

TM1241S-R, TM1261S-R s Features q Repetitive peak off-state voltage: VDRM=400, 600V q RMS on-state current: IT(RMS)=12A q Gate trigger current: IGT=8m A max (MODE , , q For resistive load q UL approved type available
External Dimensions
(Unit: mm)
φ 3.3±0.2 16.9±0.3 8.4±0.2
10.0±0.2
4.2±0.2 C 0.5 2.8
0.8±0.2
)
4.0± q Isolation voltage: VISO=1500V(50Hz Sine wave, RMS)
13.0 min a b
1.35±0.15 1.35± +0.2 0.85
- 0.1
3.9±
2.54 2.2±0.2
+0.2 0.45
- 0.1
2.4±0.2 a. Part Number b. Lot Number
(1). Terminal 1 (T1) (2). Terminal 2 (T2) (3). Gate (G)
(1) (2) (3)
Weight: Approx. 2.1g...
