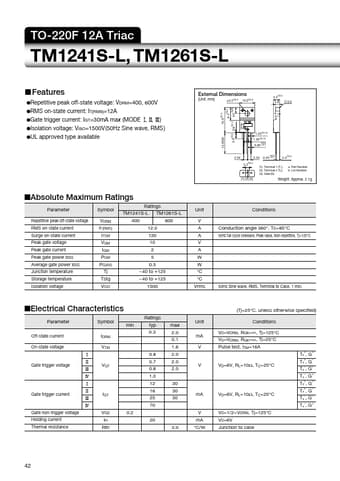

TO-220F 12A Triac
TM1241S-L, TM1261S-L
s Features
qRepetitive peak off-state voltage: VDRM=400, 600V qRMS on-state current: IT(RMS)=12A qGate trigger current: IGT=30mA max (MODE , , qUL approved type available
External Dimensions
(Unit: mm)
φ 3.3±0.2 16.9±0.3 8.4±0.2
0.2
10.0±0.2
4.2±0.2 C 0.5 2.8
3.9±0.2 0.8±0.2
)
4.0±
qIsolation voltage: VISO=1500V(50Hz Sine wave, RMS)
13.0 min
a b
1.35±
0.15
1.35±0.15 +0.2 0.85 – 0.1 +0.2 0.45 – 0.1 2.4±
2.54
0.2 2.2±
2.54
0.2
(1). Terminal 1 (T1) (2). Terminal 2 (T2) (3). Gate (G)
a. Part Number b. Lot Number
(1) (2) (3)
Weight: Approx. 2.
