BR300 - 1 A Non-Isolated Step Down DC/DC Converter Module

Datasheet Summary

Description

The BR300 is non-isolated step down type DC/DC converter module.

The single module includes: a control IC, inductor, ceramic capacitor, and standoff pins.

This provides a complete DC / DC converter solution, requiring few external components.

Features

  • Input voltage range 8 to 30 VDC.
  • Circuit topology: step-down chopper.
  • Switching frequency: 350 kHz.
  • Output: 5 V, 1 A, 5 W.
  • Module footprint: 14 × 14 × 10 mm (W × D × H).
  • Weight: 1.6 g.
  • All in one.
  • Design-free.
  • High efficiency: 91% (typ) at VIN = 8 V, IO = 0.6 A.
  • Miniaturizes space required, by using high-frequency switching technology.
  • Protection functions: ▫ Overcurrent Protection function (OCP), with auto restart ▫ Thermal Shutdown Protec.

📥 Download Datasheet

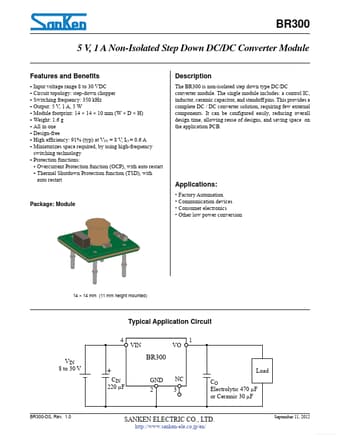

Datasheet preview – BR300
