DJR0417 - P-channel Trench Power MOSFET

Product Overview

Sanken

Part number	DJR0417
Manufacturer	Sanken
File Size	517.37 KB
Description	P-channel Trench Power MOSFET
Datasheet	DJR0417 Datasheet

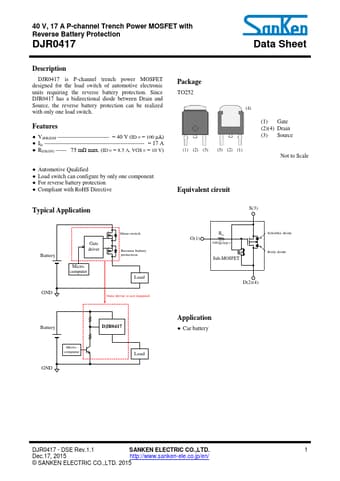

Additional preview pages of the DJR0417 datasheet.

DJR0417 is P-channel trench power MOSFET designed for the load switch of automotive electronic units requiring the reverse battery protection.

V(BR)DSS ----------------------------.
40 V (ID =.
100 μA).
ID ------------------------------------------------------.
17 A.
RDS(ON) ------ 75 mΩ max. (ID =.
8.5 A, VGS =.
10 V).
Automotive Qualified.
Load switch can configure by only one component.
For reverse battery protection.
Compliant with RoHS Directive Package TO252 (4) (1) Gate (2)(4) Drain (3) Source (1) (2) (3) (3) (2) (1) Not to Scale Equivalent ci.
