K1190 2SK1190

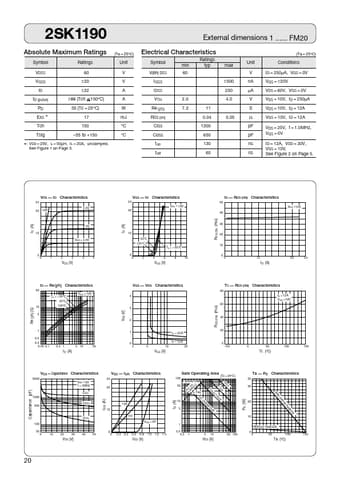

2SK1190 External dimensions 1 FM20 Absolute Maximum Ratings (Ta = 25ºC) Symbol Ratings Unit VDSS 60 VGSS ±20 ID ±22 ID (pulse) ±88 (Tch 150ºC) PD 35 (Tc = 25ºC) EAS 17 Tch 150 Tstg 55 to +150 : VDD = 25V, L = 50µH, IL = 20A, unclamped, See Figure 1 on Page 5. V V A A W mJ ºC ºC Electrical Characteristics Symbol Ratings min typ V(BR) DSS 60 I GSS I DSS VTH 2.0 Re (yfs) 7.3 11 RDS (on) 0.04 Ciss 1300 Coss 650 ton 130 toff 60 max ±500 250 4.0.
