MN1526 - Silicon NPN Epitaxial Planar Transistor

Datasheet Summary

Description

The MN1526 is a NPN transistor of 260 V, 15 A.

The product has constant hFE characteristics in a wide current range, providing high-quality audio sounds.

Features

Complementary to MP1526.
LAPT (Linear Amplifier Power Transistor).
High Transition Frequency.
Bare Lead Frame: Pb-free (RoHS Compliant).
VCEO--------------------------------------------------- 260 V.
IC -------------------------------------------------------- 15 A.
fT----------------------------------------------------- 60 MHz.
PC ------------------------------------------------------ 150 W.

Sanken

📥 Download Datasheet

Datasheet Details

Part number	MN1526
Manufacturer	Sanken
File Size	336.90 KB
Description	Silicon NPN Epitaxial Planar Transistor
Datasheet	MN1526 Datasheet

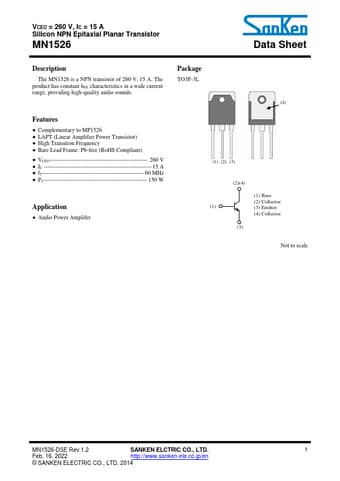

Additional preview pages of the MN1526 datasheet.

📁 Similar Datasheet

MN152810 - Electronic Component (Matsushita)
MN152811 - Electronic Component (Matsushita)
MN1500 - High Speed 4 Bit Single Chip Microcomputers (Matsushita)
MN150222 - Microcomputer Manual (Panasonic)
MN150404 - Microcontroller (Matsushita)
MN150413 - Microcontroller (Matsushita)
MN150413 - (MN150813 / MN150413) Micro controller (ETC)
MN150414 - Microcontroller (Matsushita)
MN150813 - (MN150813 / MN150413) Micro controller (ETC)
MN150837 - Microcontroller (Matsushita Electric)

Other Datasheets by Sanken

MN130S - silicon power transistor

Full PDF Text Transcription

Click to expand full text

VCEO = 260 V, IC = 15 A Silicon NPN Epitaxial Planar Transistor MN1526 Data Sheet Description Package The MN1526 is a NPN transistor of 260 V, 15 A. The product has constant hFE characteristics in a wide current range, providing high-quality audio sounds.
