MN611S Datasheet - Sanken

MN611S Power Transistor

Power Transistor MN611S Absolute Maximum Ratings (Ta=25ºC) Symbol Ratings Unit VCBO 115±10 V VCEO 115±10 V VEBO 6 V IC ±6 (pulse ±10) A IB 1 A 50 (Tc=25ºC) PC W 1.2 (Ta=25ºC, No Fin) Tj 150 ºC Tstg 55 to +150 ºC Electrical Characteristics Symbol ICBO IEBO VCEO hFE VCE (sat) VFEC ES/B Test Conditions VCB=105V VEB=6V IC=50mA VCE=1V, IC=1A IC=1.2A, IB=12mA IFEC=6A L=10mA (Ta = 25ºC) Ratings min typ max Unit 10 µA 10 µA 105 115 125 V 400 800 1500 0.08 0.

MN611S-Sanken.pdf

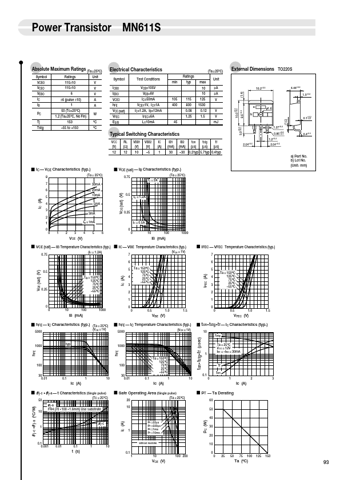

Preview of MN611S PDF

Datasheet Details

Part number:

MN611S

Manufacturer:

Sanken ↗

File Size:

36.35 KB

Description:

Power transistor.
