SCM1263MF, SCM1261MF, 600V High Voltage 3-phase Motor Drivers

600 V High Voltage 3-phase Motor Drivers SCM1200MF Series Data Sheet .
The SCM1200MF series are high voltage 3-phase motor drivers in which transistors, pre-drive circuits, and bootstrap circuits (diodes and resistors) ar.

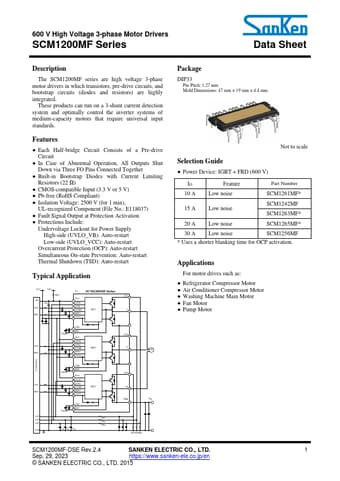

datasheet Preview Page 1 from Datasheet4u.com

SCM1261MF-Sanken.pdf

SCM1263MF Datasheet Preview — This datasheet PDF includes multiple part numbers: SCM1263MF, SCM1261MF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SCM1263MF, SCM1261MF

Manufacturer:

Sanken ↗

File Size:

917.55 KB

Description:

600V High Voltage 3-phase Motor Drivers

Note:

This datasheet PDF includes multiple part numbers: SCM1263MF, SCM1261MF.
Please refer to the document for exact specifications by model.

Features

* Each Half-bridge Circuit Consists of a Pre-drive Circuit
* In Case of Abnormal Operation, All Outputs Shut Down via Three FO Pins Connected Together
* Built-in Bootstrap Diodes with Current Limiting Resistors (22 Ω)
* CMOS-compatible Input (3.3 V or 5 V)
* Pb-free (RoHS Complia

Applications

* For motor drives such as:
* Refrigerator Compressor Motor
* Air Conditioner Compressor Motor
* Washing Machine Main Motor
* Fan Motor
* Pump Motor SCM1200MF-DSE Rev.2.4 SANKEN ELECTRIC CO. , LTD. 1 Sep. 29, 2023 https://www. sanken-ele. co. jp/en © SANKEN ELECTRIC CO. , LTD. 201
