SEL4025
34.63kb

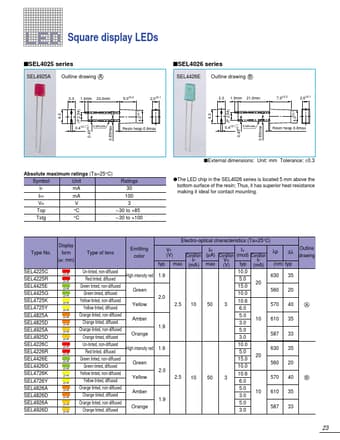

Square display leds.
TAGS
📁 Related Datasheet
SEL4026 - 2x4 Rectangular LED
(Sanken electric)
..
SEL4026 Series
2×4 Rectangular LED
SEL4026 Series
External Dimensions
0.65max
(Direct Mount)
(Unit: mm)
Resin heap 0.8max
±0.1.
SEL4027 - Bow-type LEDs
(Sanken)
Bow-type LEDs
sSEL4027 series
SEL4427E Outline drawing A
sSEL4028 series
SEL4628C Outline drawing B
1.0min
23.0min Cathode
5.0±0.2
2.0±0.1
1.0mi.
SEL4028 - 3.1phi Bow-shaped LED
(Sanken electric)
..
SEL4028 Series
3.1φ Bow-shaped LED
SEL4028 Series
External Dimensions
(Unit: mm)
Directivity (Typical)
0.65max
±0.1
Resin he.
SEL4029 - 3.1phi Bow-shaped LED
(Sanken electric)
..
SEL4029 Series
3.1φ Bow-shaped LED
SEL4029 Series
External Dimensions
1.0min 20.5min Cathode (2.54) 8.0±0.2 (1.0) 3.1±0.2 3.5±0..
SEL4010 - 4 round-type standard LEDs
(Sanken)
4ø round-type standard LEDs
sSEL4010 series
Outline drawing A
1.0min Cathode 2.2
(P.2.54)
ø4.8
25.5min (6.5 0.8
±0.5
5.0±0.1
ø4.0±0.2
) 1.5
SEL491.
SEL4014 - LED
(Sanken)
4ø round-type contact mount LEDs (for automatic insertion)
sSEL4014 series
Outline drawing A
1.0min 2.2 24.5min (1.5) 5.0±0.2
ø4.0
±0.2
(P.2.54) 0.45.
SEL4017 - 2phi Round Special-shaped LED
(Sanken electric)
..
SEL4017 Series
2φ Round Special-shaped LED
SEL4017 Series
External Dimensions
1.0min 23.0min 8.0±0.2 (1.5) 4.0±0.1 4.0±0.2 4.4±0.
SEL4110R - 4 round-type standard LEDs
(Sanken)
4ø round-type standard LEDs
sSEL4010 series
Outline drawing A
1.0min Cathode 2.2
(P.2.54)
ø4.8
25.5min (6.5 0.8
±0.5
5.0±0.1
ø4.0±0.2
) 1.5
SEL491.
SEL4110S - 4 round-type standard LEDs
(Sanken)
4ø round-type standard LEDs
sSEL4010 series
Outline drawing A
1.0min Cathode 2.2
(P.2.54)
ø4.8
25.5min (6.5 0.8
±0.5
5.0±0.1
ø4.0±0.2
) 1.5
SEL491.
SEL4110W - 4 round-type standard LEDs
(Sanken)
4ø round-type standard LEDs
sSEL4010 series
Outline drawing A
1.0min Cathode 2.2
(P.2.54)
ø4.8
25.5min (6.5 0.8
±0.5
5.0±0.1
ø4.0±0.2
) 1.5
SEL491.
