SEL4214R LED

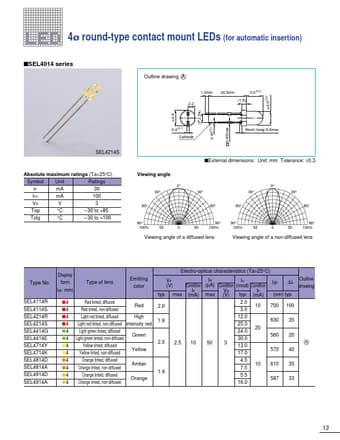

4ø round-type contact mount LEDs (for automatic insertion) sSEL4014 series Outline drawing A 1.0min 2.2 24.5min (1.5) 5.0±0.2 ø4.0 ±0.2 (P.2.54) 0.45±0.1 ø4.8 0.4±0.1 Cathode 0.65max Resin heap 0.8max SEL4214S sExternal dimensions: Unit: mm Tolerance: ±0.3 Absolute maximum ratings (Ta=25°C) Symbol Unit Ratings IF mA 30 IFP mA 100 VR V 3 Top °C 30 to +85 Tstg °C 30 to +100 Viewing angle 0° 30° 60° 30° 60° 60° 30° 0° 30° 60° 90° 100% 50 0 50 90° 100% 90° 100% 50 0 .

SEL4214R Datasheet (30.28 KB)
