SEL4926D Square display LEDs

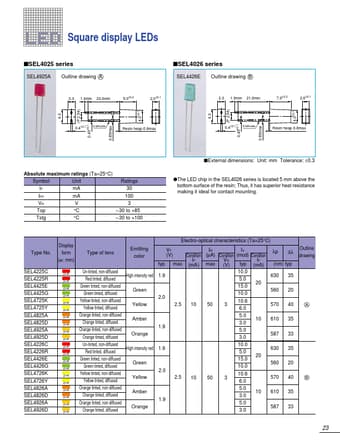

Square display LEDs sSEL4025 series SEL4925A Outline drawing A sSEL4026 series SEL4426E Outline drawing B 2.3 1.0min (P.2.54) 23.0min 5.0±0.2 2.0±0.1 2.3 (P.2.54) 1.0min 21.0min 7.0±0.2 2.0±0.1 4.0±0.1 0.45±0.1 0.65max 0.4±0.1 0.65max Cathode 0.45±0.1 Resin heap 0.8max 0.4±0.1 Cathode Resin heap 0.8max sExternal dimensions: Unit: mm Tolerance: ±0.3 Absolute maximum ratings (Ta=25°C) Symbol Unit Ratings IF mA 30 IFP mA 100 VR V 3 Top °C 30 to +85 Tstg °C 3.
