SEL5223 LED

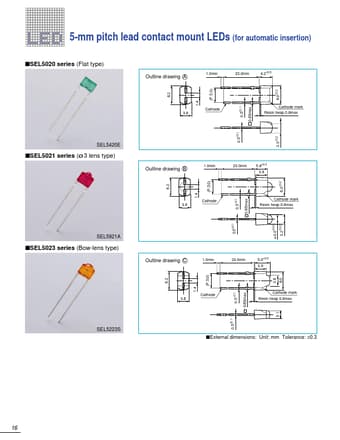

5-mm pitch lead contact mount LEDs (for automatic insertion) sSEL5020 series (Flat type) Outline drawing A 1.0min 23.0min 4.2±0.5 (P.5.0) 1.4 0.5±0.1 Cathode 3.6 0.65max Resin heap 0.8max 0.5±0.1 SEL5420E sSEL5021 series (ø3 lens type) Outline drawing B 1.0min 23.0min 5.8±0.5 3.9 (P.5.0) 1.4 0.5+0.1 Cathode 3.6 0.5±0.1 0.65max Cathode mark Resin heap 0.8max ø3.0±0.2 SEL5921A sSEL5023 series (Bow-lens type) Outline drawing C 1.0min 23.0min 5.0±0.5 3.9 (P.5.0) 6.2 1.4 0.5+0.1.
