SSC3S902, SSC3S901 LLC Current-Resonant Off-Line Switching Controller

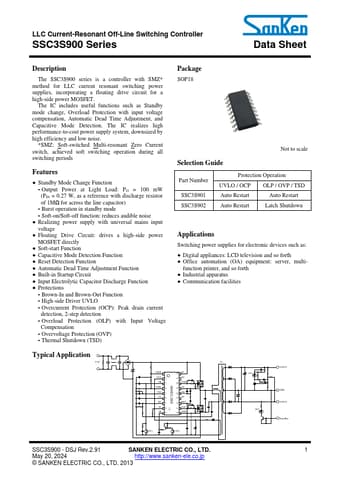

📥 Download Datasheet  Datasheet Preview Page 1

Description

LLC Current-Resonant Off-Line Switching Controller SSC3S900 Series Data Sheet .
The SSC3S900 series is a controller with SMZ. method for LLC current resonant switching power supplies, incorporating a floating drive circuit for.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SSC3S902, SSC3S901. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SSC3S902, SSC3S901
Manufacturer
Sanken ↗
File Size
906.14 KB
Datasheet
SSC3S901-Sanken.pdf
Description
LLC Current-Resonant Off-Line Switching Controller
Note
This datasheet PDF includes multiple part numbers: SSC3S902, SSC3S901.
Please refer to the document for exact specifications by model.

Features

* Standby Mode Change Function ▫ Output Power at Light Load: PO = 100 mW (PIN = 0.27 W, as a reference with discharge resistor of 1MΩ for across the line capacitor) ▫ Burst operation in standby mode ▫ Soft-on/Soft-off function: reduces audible noise
* Realizing power supply with universal ma

Applications

* Switching power supplies for electronic devices such as:
* Digital appliances: LCD television and so forth
* Office automation (OA) equipment: server, multi- function printer, and so forth
* Industrial apparatus
* Communication facilities Typical Application VAC VSEN 1 VCC 2 FB 3 V
