STR-A6069HZ, STR-A6069MZ - Off-Line PWM Controllers

Sanken

Datasheet Details

Part number	STR-A6069HZ, STR-A6069MZ
Manufacturer	Sanken ↗
File Size	580.75 KB
Description	Off-Line PWM Controllers
Datasheet	STR-A6069MZ-Sanken.pdf
Note	This datasheet PDF includes multiple part numbers: STR-A6069HZ, STR-A6069MZ. Please refer to the document for exact specifications by model.

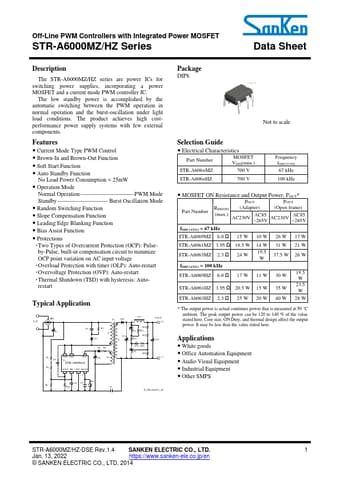

The STR-A6000MZ/HZ series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC.

Current Mode Type PWM Control.
Brown-In and Brown-Out Function.
Soft Start Function.
Auto Standby Function No Load Power Consumption < 25mW.
Operation Mode Normal Operation ----------------------------PWM Mode Standby -------------------------- Burst Oscillation Mode.
Random Switching Function.
Slope Compensation Function.
Leading Edge Blanking Function.
Bias Assist Function.
Protections Two Types of Overc.
