STR-W6750F - Power-IC

Description

The STR-W6750F is power IC for quasi-resonant type switching power supply, incorporating a power MOSFET and a controller IC.

The product achieves high efficiency and low noise power supply systems by the quasi-resonant operation.

Sep.

Package Package name: TO-220F-6L (FM207) Featur

Features

  • Quasi-resonant operation mode Achieves the optimal high efficiency and low noise power supply systems.
  • Current mode control.
  • Built-in PWM oscillator The PWM operates with the minimum frequency of around 22kHz, until the quasi-resonant signal becomes valid, reduces the stress on components at startup and load-shorted.
  • Built-in soft start function.
  • Step-drive function, reducing switching noise.
  • Input compensation at overcurrent The function reduces the distortion.

📥 Download Datasheet

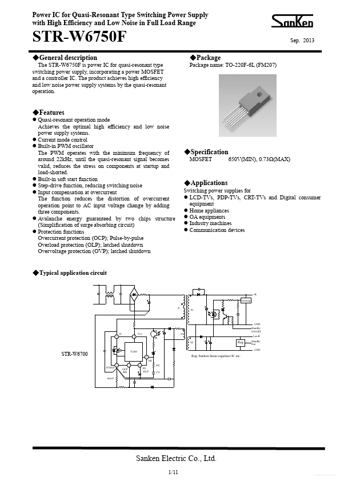

Datasheet preview – STR-W6750F

Datasheet Details

Part number STR-W6750F
Manufacturer Sanken
File Size 1.03 MB
Description Power-IC
Datasheet download datasheet STR-W6750F Datasheet
Additional preview pages of the STR-W6750F datasheet.

📁 Similar Datasheet

  • STR-W6750 - Off-Line Quasi-Resonant Switching Regulators (Sanken electric)
  • STR-W6750 - Off-Line Quasi-Resonant Switching Regulators (Allegro MicroSystems)
  • STR-W6753 - Universal Input / 58W Off-line Quasi Resonant Flyback Switching Regulator (Allegro Microsystems)
  • STR-W6754 - Universal Input/100W Off-Line Quasi Resonant Flyback Switching Regulator (Allegro Microsystems)
  • STR-W6756 - Universal-Input / 140W Off-Line Quasi-Resonant Flyback Switching Regulator (Allegro MicroSystems)
  • STR-W6735 - Quasi-Resonant Topology Primary Switching Regulators (Allegro MicroSystems)
  • STR-W6765 - Quasi-Resonant Topology Primary Switching Regulators (Allegro MicroSystems)
  • STR-W6200D - PWM Off-Line Switching Regulator (Sanken Electric)
  • STR-W6251D - 30 W-Universal Input/45 W-230 Vac Input PWM Switching Regulators (Allegro Microsystems)
  • STR-W6252D - 60 W-Universal Input/40 W-230 Vac Input PWM Switching Regulators (Sanken Electric)
Other Datasheets by Sanken
  • STR-W6753 - Quasi-Resonant Topology Primary Switching Regulator
  • STR-W6754 - Universal-Input/100 W Off-Line QuasiResonant Flyback Switching Regulator
  • STR-W6756 - Quasi-Resonant Switching Regulators
  • STR-W6700 - (STR-W6700 Series) Quasi-Resonant Switching Regulators
  • STR-W6700 - Application Note
  • STR-W6723N - power MOSFET
  • STR-W6734 - power MOSFET
  • STR-W6735 - Quasi-Resonant Topology Primary Switching Regulators

Full PDF Text Transcription

Click to expand full text
Power IC for Quasi-Resonant Type Switching Power Supply with High Efficiency and Low Noise in Full Load Range STR-W6750F ◆General description The STR-W6750F is power IC for quasi-resonant type switching power supply, incorporating a power MOSFET and a controller IC. The product achieves high efficiency and low noise power supply systems by the quasi-resonant operation. Sep. 2013 ◆Package Package name: TO-220F-6L (FM207) ◆Features  Quasi-resonant operation mode Achieves the optimal high efficiency and low noise power supply systems.  Current mode control  Built-in PWM oscillator The PWM operates with the minimum frequency of around 22kHz, until the quasi-resonant signal becomes valid, reduces the stress on components at startup and load-shorted.
