STR-X6759N - Off-Line Quasi-Resonant Switching Regulators

Product Overview

Sanken

Part number	STR-X6759N
Manufacturer	Sanken
File Size	489.96 KB
Description	Off-Line Quasi-Resonant Switching Regulators
Datasheet	STR-X6759N Datasheet

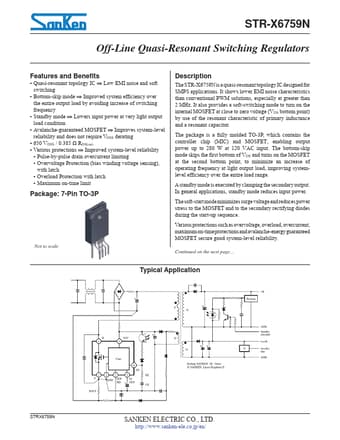

Additional preview pages of the STR-X6759N datasheet.

The STR-X6759N is a quasi-resonant topology IC designed for SMPS applications.

Quasi-resonant topology IC  Low EMI noise and soft switching.
Bottom-skip mode  Improved system efficiency over the entire output load by avoiding increase of switching frequency.
Standby mode  Lowers input power at very light output load condition.
Avalanche-guaranteed MOSFET  Improves system-level reliability and does not require VDSS derating.
650 VDSS / 0.385 Ω RDS(on).
Various protections  Improved system-level reliability ▫ Pulse-by-pulse drain overcurre.
